In this post, I’ll walk you through how we architected a real-time system with:
Sub-second event latency
100K+ events/sec throughput
Reliability at scale
Using Scala/Python and open-source tools
The Business Need
At Improving, we needed to build an enterprise-grade ETL pipeline to handle massive unstructured telemetry data (JSON, XML) from multiple sources. The requirements were:
Sub-second latency from event ingestion to query availability
High availability and fault tolerance
Ability to scale up to 10TB/day of raw event data
Schema flexibility to support evolving IoT schemas

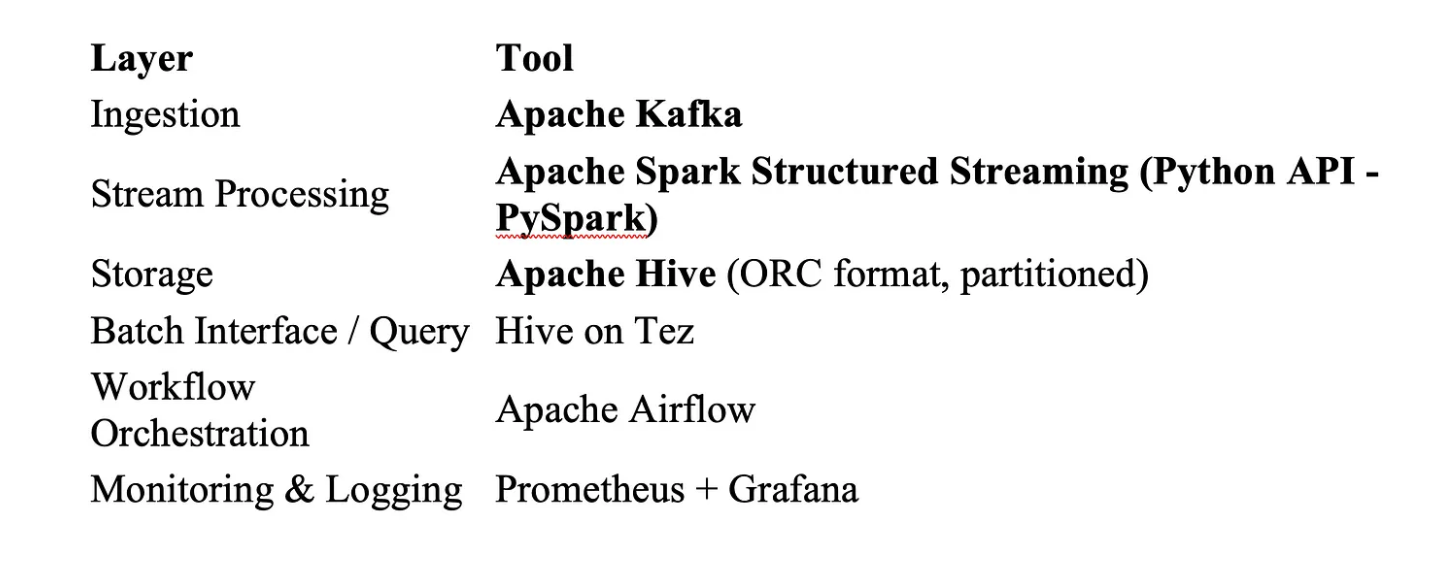

Tech Stack (On-Premise)
We chose proven, scalable technologies:

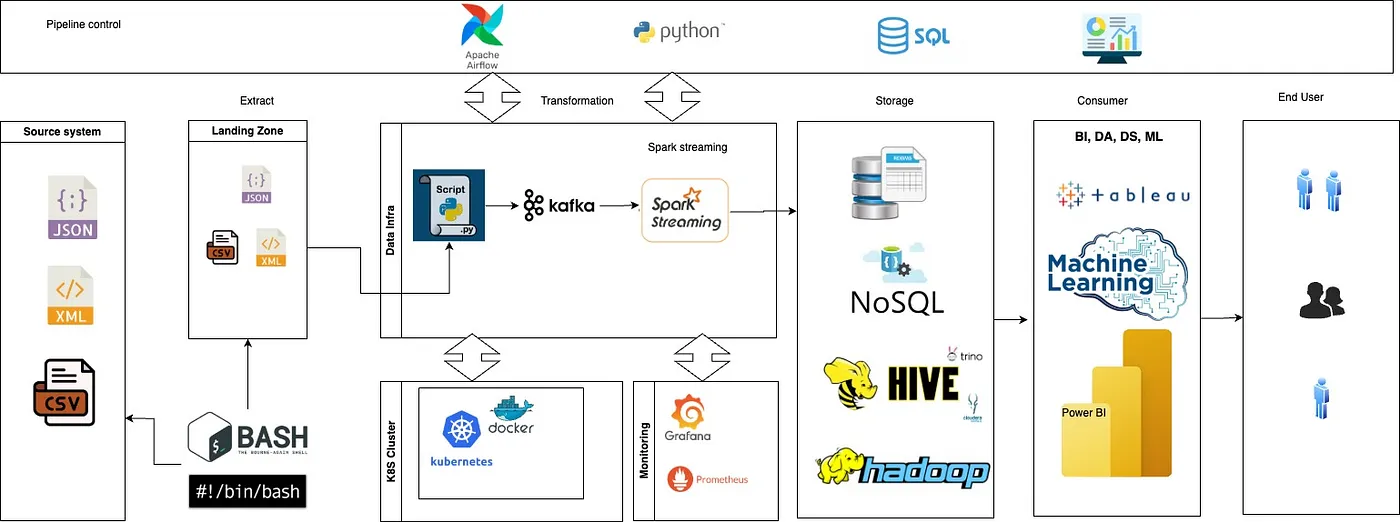

On-Prem System Design:
Kafka: The Real-Time Backbone
Partitioned topics for parallelism (100+ partitions)
Compression enabled (LZ4)
Replication factor = 3 for fault tolerance
Producers send events in Avro format with Schema Registry
Key design for low latency:
Kafka is tuned for low batch linger.ms = 1ms, and acks=1 to prioritize speed (with redundancy at the storage layer).
spark.streaming.backpressure.enabled=true
Spark Structured Streaming: sub-second Latency Magic
Our PySpark streaming jobs were finely tuned for micro-batching:
Batch size: Dynamic micro-batches, capped at ~1 second worth of data
Stateful aggregations: enabled with watermarks
Checkpointing: HDFS-based checkpoint directory for exactly-once
To avoid serialization overhead, we parsed messages using fastavro in UDFs and wrote output using DataFrameWriter with parquet format (great for Hive).
Hive: Scalable Storage with Fast Lookups
External partitioned tables (by dt_skey, vendor)
Snappy-compressed Parquet to optimize I/O throughput and enable fast, columnar reads with predicate pushdown in Hive
Tez engine optimized with: Bloom filters, Vectorized execution, Partition pruning
Every Spark batch wrote directly to HDFS, and Hive picked up the new data via partition repair, e.g., triggering MSCK REPAIR TABLE or ALTER TABLE ADD PARTITION (triggered by Airflow).
Key Optimizations
1. Micro-Batch Overhead Reduction
Tuning spark.sql.shuffle.partitions and reusing serializers kept each micro-batch under 50ms.
Spark Tuning Parameters: executor-cores=5 executor-memory=8G num-executors=50 spark.sql.shuffle.partitions=600 → optimized based on Kafka partition count spark.memory.fraction=0.8 → allows more memory for shuffles and caching
2. Broadcast Joins for Reference Data
One of the major performance killers in distributed systems like Spark is shuffle-heavy joins. To mitigate this, we broadcast small reference datasets. Replaced shuffle joins with broadcast joins where lookup tables were < 100MB.
broadcast_df = spark.read.parquet(“/hdfs/path/ref_data”).cache() ref_broadcast = F.broadcast(broadcast_df)
joined_df = streaming_df.join(ref_broadcast, “region_code”, “left”)
Spark sends the small
ref_datato all executors.No need to shuffle the large streaming dataset.
Result: Zero shuffle, faster join, sub-millisecond latency overhead.
3. Parallel Kafka Reads
Each Kafka partition was mapped to a dedicated Spark executor thread (no co-partitioning bottlenecks).
Kafka Setup for High Throughput - Topic partitioning: 100+ partitions to spread ingestion - Replication factor: 3(for failover) - Compression: lz4 for lower latency and decent compaction - Message size: capped at 1MB to avoid blocking
4. Zero GC Pauses
Spark is configured with G1GC and memory tuning to avoid JVM stalls during peak ingestion. Problem: Garbage collection pauses and memory pressure slow down micro-batch completion
Example Usage of G1GC and set: -XX:+UseG1GC -XX:InitiatingHeapOccupancyPercent=35 -XX:+ExplicitGCInvokesConcurrent
5. Data Skew Handling
Used salting and repartitioning to prevent massive shuffle tasks on rare event types.
Example salting and repartitioning: from pyspark.sql.functions import when, concat_ws, floor, rand
# Apply salt only to the skewed key salted_df = df.withColumn( “event_type_salted”, when(col(“event_type”) == “DELIVERED”, concat_ws(“_”, col(“event_type”), floor(rand() * 10).cast(“int”)) ).otherwise(col(“event_type”)) )
# Repartition to distribute load more evenly repartitioned = salted_df.repartition(10, “event_type_salted”)
6. Compacting Small Files (Hive + HDFS)
Parquet + Snappy as the default format for all Spark batch/streaming outputs. Writing micro-batches every few milliseconds creates lots of small, parquet files, which:
Slow down Hive queries
Stress HDFS NameNode
Cause memory overhead
Optimization: - Run a daily/rolling compaction job using Spark to merge files - Use Hive-aware bucketing and partitioning logic (avoid too many small partitions) - Combine output using .coalesce(n) or .repartition(n) before writing
Monitoring & Observability
Kafka: monitored using Prometheus exporters and alerting for lag
Spark: integrated with Grafana for executor memory/CPU metrics
End-to-end lag: measured from Kafka write timestamp to Hive write timestamp, stored in metrics DB
We built a latency dashboard to visually inspect where bottlenecks occurred useful for proactive tuning.
Testing and Benchmarking
Before production, we: - Simulated 10TB/day ingestion using Kafka producers - Benchmarked with 3 years of historical data - Ran stress tests with synthetic burst events (3x normal load)
Lessons Learned
Always test end-to-end latency, not just per-layer performance.
Hive can be real-time enough if you partition smartly and write efficiently.
On-prem doesn’t mean slow with the right tuning, open-source can rival cloud-native stacks.
Spark Structured Streaming can absolutely deliver low-latency on-prem pipelines
Partitioning strategy matters more than compute power
Good old Hive can still shine when tuned properly
Kafka’s backpressure mechanisms are lifesavers under peak load
Conclusion
At Improving, we believe performance engineering is a team sport. Designing an 8-10TB/day on-prem pipeline with sub-second latency was ambitious, but using Kafka + Spark + Hive with smart tuning, we made it work.
If you’re building large-scale ETL pipelines or modernizing on-prem systems, feel free to reach out to us!
